Launching the Brick Moon: GPS’ path from the space race to smartphone

Over the past 25 years, GPS has evolved from a battlefield novelty to a smartphone staple. Beset by technological challenges, Pentagon infighting, and the arc of history, the road to space-based navigation was grueling.

Shortly after the Civil War, Edward Everett Hale, a prolific author and Unitarian minister from Boston, wrote a serial in the Atlantic Monthly titled “The Brick Moon.” Widely believed to be the first description of an artificial satellite, the story describes the construction and launch of a manmade moon to aid in the calculation of longitude for ocean-going ships. (Latitude at the time was measured from the North Star.)

Hale’s fantastical short story predated the NAVSTAR Global Positioning System, or GPS, by more than a century. However prescient, the Victorian science-fiction tale could not have predicted the extent to which GPS would transform modern warfare, travel, and communication, leading to applications never before imagined — even by those involved with its development.

GPS uses a constellation of satellites orbiting in three different planes to continuously transmit positioning, navigation, and timing (PNT) information to Earth. Affixed to a monitoring station, pleasure craft, or GPS-guided missile, a receiver interprets signals from four satellites to determine its location and time with stunning precision. Error margins are no greater than a few meters or nanoseconds.

The brick moon in Hale’s story was much more rudimentary. Several characters accidentally stow away on the satellite during its launch, surviving and founding a society marooned 4,000 miles above Earth. Hale lauded his fictional community for its simplicity. Today, “The Brick Moon” is mostly remembered for the idea of using a manmade satellite for navigation. Within a century of its publication, the United States was in the middle of the space race, and the military was working on its own brick moon.

Sputnik Ascending

Illustration of Sputnik by Zack Stanton

Photo courtesy of NASA

On October 4, 1957, the Soviet Union launched a metallic orb the size of microwave into space. Sputnik, the first manmade satellite, not only heralded the arrival of the “space age” but also marked the first step in the development of GPS.

Sputnik carried a radio transmitter that emitted a constant pulse, allowing radio listeners on Earth to track it on the 20-megahertz frequency. Coincidentally, this was the same frequency was used by WWV, a government-run radio station in Greenbelt, Maryland, that broadcast time signals. WWV would briefly suspend its signal to allow amateur radio operators to hear Sputnik’s eerie pulse as the satellite sped through its low-earth orbit.

Not far from the Greenbelt radio station, William Guier and George Weiffenbach, young physicists at Johns Hopkins University’s Applied Physics Laboratory, began studying the change in frequency (termed the Doppler shift) in Sputnik’s pulses as the satellite raced past. With this data, they were able to calculate Sputnik’s position and direction and predict its orbit. In March 1958, Guier and Weiffenbach’s boss, Frank McClure, challenged them further: use the satellite’s orbit to determine the latitude and longitude of a receiving station on earth. In 1964, this work became the basis for the Navy’s TRANSIT system, the first navigational satellite program and an important precursor to GPS.

A Navy Project

Guier and Weiffenbach’s fascination with Sputnik led to the Navy’s TRANSIT system, but its potential was limited, as it provided only surface location and relied on satellites that moved in and out of range. Navy submarines and ships stationed all over the globe, sometimes deep underwater, needed something better.

Naval engineer Roger Easton had a few ideas. One was simple: use more satellites. The other was groundbreaking: synchronize the satellites with atomic clocks. “The improved accuracy from replacing the crystal oscillators with atomic clocks . . . was significant,” says Richard Easton, the son of Roger Easton and co-author of GPS Declassified: From Smart Bombs to Smartphones. “Atomic clocks helped inspire the original formulation of [the Navy’s Timation program] in April 1964.”

Easton (left) overlooking the installation of the Vanguard-1 satellite on the Viking launch vehicle.

Illustration by Zack Stanton, photo courtesy of National Research Laboratory

The atomic clocks enabled more precise PNT measurements. Eric F. Frazier, coauthor of GPS Declassified, explains: “A simple way to understand the importance of sending extremely precise timing signals 12,500 miles to the ground is that an error of one-billionth of second — a nanosecond — equals about one foot of error on the ground.”

As a result of Easton’s innovation, the Navy launched the first Timation satellite in October 1967. Able to track a location on Earth within one-third of a nautical mile, the system was revolutionary in both its precision and its accessibility. It even worked with moving receivers in boats and airplanes. Beyond the improved accuracy of atomic clocks, Timation pioneered other technical aspects essential to development of GPS, such as the 27-satellite design with eight-hour, circular orbits in three planes.

Air Force Ambitions

Col. Bradford Parkinson

By the late 1960s, Air Force Col. Bradford Parkinson began researching how to improve the TRANSIT system. A combat veteran who flew 26 missions over Laos, Parkinson had earned a master’s degree from the Massachusetts Institute of Technology, where he studied under Dr. Charles Draper, the “father of inertial navigation.” Of his own navigational work, Parkinson remarked, “It was like I’d been preparing to do this.” But he soon realized the technology had a long way to go: “I was jumping on a slow-moving train.”

A then-classified Air Force report prepared in the mid-1960s by Ivan Getting, president and CEO of The Aerospace Corporation, laid out 12 different approaches to building an improved PNT system; Parkinson and his team chose the most complex of the 12 to pursue. The proposed system would have to receive and interpret four variables: latitude, longitude, altitude, and time. Called Project 621b, its development began in 1970 at White Sands, New Mexico. The endeavor ultimately brought a crucial innovation, the Code Division Multiple Access (CDMA) signal — harder to jam, able to be encrypted, and more user-friendly. The CDMA’s game-changing specs anticipated the use of digital receivers.

Before CDMA radio signals would become the standard for GPS, however, further prototyping and testing was needed to resolve concerns about signal locating and the receiver’s design — not to mention getting the program accepted by the Pentagon.

Consensus in the Lonely Halls

In August 1973, a Pentagon review board rejected the Air Force’s 621b proposal because it lacked sufficient collaboration among the branches of the armed services. Parkinson was asked to try again and, on Labor Day weekend of 1973, found himself holed up with other servicemen in a conference room in the largely empty Pentagon, tasked with drafting a sufficiently joint proposal. In GPS lore, this gathering came to be known as the “Lonely Halls” meeting.

To encourage free thinking, the Pentagon was intentionally chosen as the meeting spot, far from the Air Force representatives’ home base in Los Angeles. The resulting proposal drew from the best elements of the competing systems: The Air Force’s jamming-resistant CDMA ranging signal was selected for integration into the final design, as were the Navy’s spaceflight-qualified atomic clock and satellite configuration plan.

The Pentagon approved the system in December 1973. “The art of getting something through the Pentagon is to get to a point [where] they don’t say ‘no,’” Parkinson said. “If you get a couple of supporters and no one is saying ‘no,’ you can pull it off.”

Despite Pentagon approval, many still had their doubts about the usefulness of GPS. Both the Air Force’s Strategic Air Command and the Federal Aviation Administration (FAA) were initially cold if not outright hostile to the new technology. The Strategic Air Command initially used GPS only to score its bombing runs — until it realized how accurate the scoring was, Parkinson said.

A Cold War Disaster

Despite the FAA’s initial lack of interest, GPS’ utility to civilian air travel came into focus in the wake of a disaster. On September 1, 1983, Soviet forces shot down a Korean Air Lines (KAL) passenger jet over the Sea of Japan. All 269 passengers and crew perished in one of the deadliest episodes of the Cold War.

The Reagan administration’s response to this tragedy smoothed GPS’ transition into civilian use, when it was announced that GPS would be made available to civilian aircraft as soon as the system became operational. Although the FAA was initially unreceptive to GPS, its utility for commercial air flight quickly became apparent, making the airlines a key civilian user of the technology in its nascent stages. In 1991, the FAA told the International Civil Aviation Organization that it would make GPS available for free worldwide on a continuous basis — an offer that has since been renewed multiple times.

But others maintain that GPS was always destined for widespread civilian use. Hiawatha Bray, author of You Are Here: From Compass to GPS, points to a 1981 notice in the Federal Register, which said that GPS will be made available within the limits of national security considerations. “[R]eagan’s seemingly magnanimous offer of GPS technology was a clever propaganda coup, no more,” Bray wrote in his book on GPS. “The GPS network has always been designed for civilian use and would have been made available to commercial navigators in any case.”

Entering the Modern Era

Valentine’s Day 1989 marked the beginning of GPS’ modern era, when the first Block II satellites were launched from Cape Canaveral. It had been a long road.

Almost 16 years had passed since the Pentagon first approved GPS, and 12 years had elapsed since the launch of the Navy’s first GPS demonstration satellite. During the Block I satellite era (1978–85), officials successfully thwarted attempts by Congress to zero out the program’s budget. The explosion of the Challenger space shuttle further delayed Block II’s launch date by an additional two years.

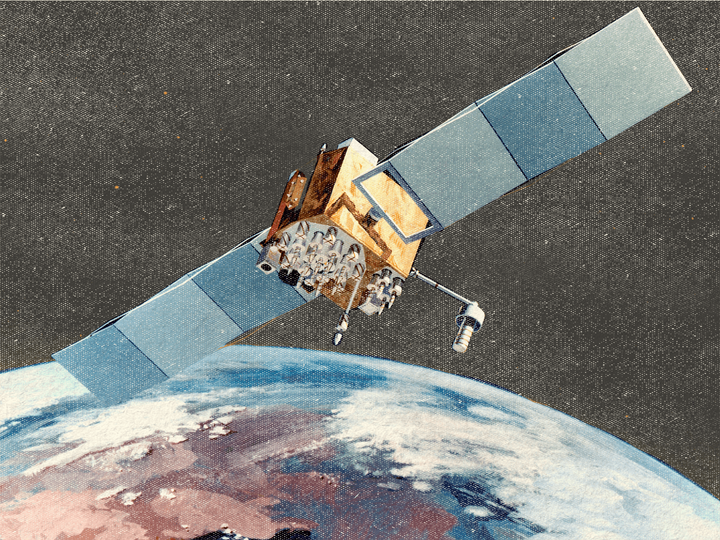

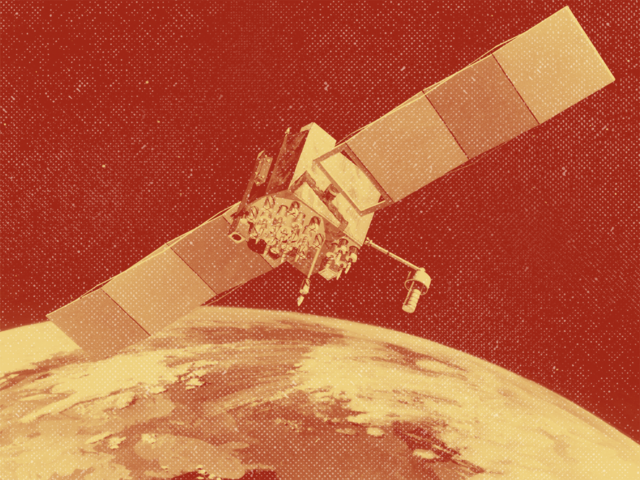

A USAF artist's rendering of a Navstar-2F satellite

By the time the first Block II satellites were launched, they were updated with radiation-hardened electronics for survival in space and enhanced security features. Designed to last between seven and eight years, Block II satellites could go for six months without needing contact to the Colorado Springs control center. The addition of a crosslink transponder in 1990 allowed the satellites to “talk” to each other without transmitting to a station on the ground.

When Iraq invaded Kuwait in August 1990, GPS was still only partially operational. Fewer than 20 satellites of the 24-satellite constellation had been launched, and half of them were experimental units. On the ground, receiver infrastructure was lacking and technical training for new operators was subpar.

Despite GPS’ shortcomings, then–Air Force Chief of Staff General Merrill McPeak called the 1990–91 Gulf War “the first space war.” GPS “did enhance the effectiveness of some air missions and certainly played a role in coordination of General [Norman] Schwarzkopf’s brilliant ‘left hook’ around the Iraqi main army,” says Dr. Rick W. Sturdevant, deputy director of history at Air Force Space Command. The limited GPS available during Operation Desert Storm still provided latitude and longitude positioning for 20 hours per day and three-dimensional coverage, which included altitude, for 15 hours per day, he adds.

After the war, the military implications of GPS were seen beyond the battlefield. The new technology transformed the military’s tactics and training, and enabled missions previously impossible without a constellation of satellites in the sky.

Parkinson argues, however, the full potential of GPS was not realized until the NATO intervention in Kosovo at the end of the 1990s, when bombers were able to accurately hit targets at higher altitudes. The technology helped increase efficiency — objectives could be now achieved with fewer sorties — while reducing the probability of hitting a civilian target like a hospital or school. And the technology trickled down from there: By the time Operation Enduring Freedom began in October 2001, U.S. troops were using GPS-guided 55mm Howitzer rounds.

Emergence into Civilian Life

Following the first Gulf war, GPS was firmly established an invaluable asset to U.S. military operations, but its development in civilian applications was lagging, quite literally.

From the beginning, the military thought GPS was too accurate for nonmilitary users. To address this concern, GPS satellites intentionally downgraded their civilian signals, a feature called “selective availability.” A weaker signal meant that foreign militaries could not use the United States’ GPS constellation to guide weapons, but it also stymied commercial use for much of the 1990s. The degraded signal could navigate a sailboat back into Massachusetts’ Wellfleet Harbor, but was not good enough to support turn-by-turn directions through downtown Chicago.

After more PNT systems came online in the 1990s, including the Russian GLONASS system and the European Union’s Galileo system, selective availability increasingly became a hindrance. In 2000, President Bill Clinton deactivated the function, opening up the more accurate signal for civilian use. In a statement, Clinton said that GPS had become a “global utility,” listing multiple applications that relied on the satellite system only a decade after the first Block II was launched.

After the 2000 announcement, the more accurate GPS signal and the rise of the cell phones ushered in an age of increased civilian uses. The marriage of mobile phones and GPS actually goes back to the 1990s, when the Federal Communications Commission decision to ensure that 911 responders could locate victims who were calling from cell phones; Beginning in 2001, phones were required to include some sort of location-finding capability, and many service providers turned to GPS to fulfill the requirement.

Even the holdouts began to include GPS capability — and not just to provide location information to first responders. Smartphone applications introduced GPS to provide driving directions, weather and traffic information, and “geotag” photos, as well as enhance social media. “As the phones became more capable, [they asked] why can’t we build [GPS] software on the phone so the consumer doesn’t just call for help, but it can be used to navigate around,” says Bray. Soon, phones began using sophisticated combinations of GPS, other PNT systems and wireless internet to allow for near-seamless navigation, opening the door for all manner of location-based apps that use the technology to find a burger, friends, or a ride home.

Illustration by Zack Stanton

Photo courtesy of Jeremy Keith

But these applications have also created challenges and dilemmas. The ridesharing app Uber is wreaking havoc upon the U.S. taxi industry, transforming what was once a living-wage profession into a part-time job without benefits, while the use of GPS trackers to surveil convicted criminals or monitor suspicious vehicles could violate the 4th Amendment’s protection against unreasonable searches. From the traffic-avoiding app Waze to iPhone cameras, mobile device applications increasingly require a user’s location, raising privacy and security questions. And the civilian dependency on GPS increases the risks of jamming: intentionally disrupting GPS signals, which is not too difficult to do and could aggravate city traffic, cause shipwrecks, or crash drones.

The integration between various PNT systems is likely to continue, while increased civilian use also drives us toward better satellites. The next generation of PNT satellite — GPS III, expected to launch in 2016 — will have a new civilian signal, making it interoperable with other international PNT systems to provide better coverage. It will also feature greater resistance to jamming and increased signal power to boost coverage and accuracy, according to a spokesperson with the Air Force’s Space and Missile Systems Center.

The Future of GPS

Even though GPS is being used more and more for civilian applications, the Defense Department has not lost interest in it — far from it. The Defense Advanced Research Projects Agency (DARPA) was one of the first believers in the concept of GPS, providing $1 million to underwrite the original TRANSIT system back in 1959. Since then, the military research agency has contributed greatly to GPS’ development. And in DARPA’s case, size matters.

In the late 1980s and early 1990s, the military used the “PSN-8 Manpack,” the most common portable GPS receiver, which weighed 17 pounds and was worn like a backpack. In 1991, DARPA introduced a miniature GPS receiver roughly the size of a pack of cigarettes, weighing a fraction of its predecessor’s size. A dramatic improvement to the Manpack, the new receiver — nicknamed the “Virginia Slim” — led to a long line of military receivers and paved the way for an influx of consumer GPS applications.

But DARPA is still going smaller as it tackles another issue: how do GPS users pick up a signal when they are underground or indoors or when an adversary is jamming GPS signals? The agency currently has an umbrella program focused on “micro-PNT” technology to develop sensors and clocks to allow for dead reckoning of navigation in lieu of GPS.

The Timing and Inertial Measurement Unit (TIMU) program seeks to develop a “tactical grade” chip — similar to units already in video game controllers and cellphones — that packs a gyroscope, accelerometers, and an oscillator into 10 cubic millimeters — roughly the size of the Lincoln Monument on the back of a penny. The chip would be used for navigation or tracking, as well as for guiding tiny missiles. However, DARPA program manager Dr. Robert Lutwak says that TIMU slowly accumulates error over time, so it could only supplement, not replace, GPS: “Ultimately, the navigation accuracy of the combined system depends both on the performance of the inertial sensors and the duration of the outages between GPS accessibility.”

DARPA’s work on TIMU highlights one of the main concerns about GPS: The system’s signals are relatively weak. Foreign militaries or even space weather could cause interference. Airports have even reported issues with GPS systems from nearby highways, where truckers use jammers to stymie GPS-enabled tracking by their bosses.

Considering the extent to which GPS is integrated in modern life, its vulnerabilities concern many experts — including the Air Force’s Col. Parkinson. He proposes increased penalties for interfering with signals, banning the sale of GPS jammers, making equipment tougher to jam, and augmenting GPS with a backup system. Still, it is difficult to fully eliminate the threat. The next iteration of GPS satellites could include the ability to withstand or counter interference, historian Sturdevant says, but he warns that “‘bad actors’ always will be looking for ways to disrupt the system.”

Meanwhile, foreign governments are shoring up their own PNT capabilities. Because of high-rise buildings and mountains in Japan, current GPS service can be spotty, leading to plans for the regional Quasi-Zenith Satellite System to augment GPS. Other countries are going a step further, concerned about the U.S. military’s control over GPS, the fact the United States could stop providing the service, and their own national security considerations. To this end, the rising powers of Asia are working to design and launch their own PNT systems: China’s BeiDou Navigation Satellite System aims to be operational by 2020, while the Indian Regional Navigation Satellite System seeks to provide service almost a thousand miles beyond India’s borders.

This clamor for PNT capability by China and India only reinforces how important GPS has become for governments and civilians alike — and how far we have come from when “The Brick Moon” first put forth the idea of space-based navigation. “None of these guys wants to rely on another country’s GPS system,” Bray says. “This is a global utility. It is absolutely essential.”

* * *

Aaron Lovell is a senior program associate with the Science and Technology Innovation Program at the Wilson Center. Formerly a reporter, Lovell covered Congress, environmental policy, and high finance. You can follow him on Twitter at @aaron_lovell.
